EZ360 – the one-handed clamp series with 360° rotating handle unit
The innovative EZ360 one-handed clamp series from BESSEY has a new addition:
In addition to the previous size with 80 mm throat depth, two further variants are now available - size S with 40 mm and size M with 60 mm throat depth. The range now comprises a total of seven models with clamping widths from 110 to 600 mm, spreading widths from 104 to 765 mm and clamping forces from 40 to 140 kg.
The new sizes
EZ360S-11SET

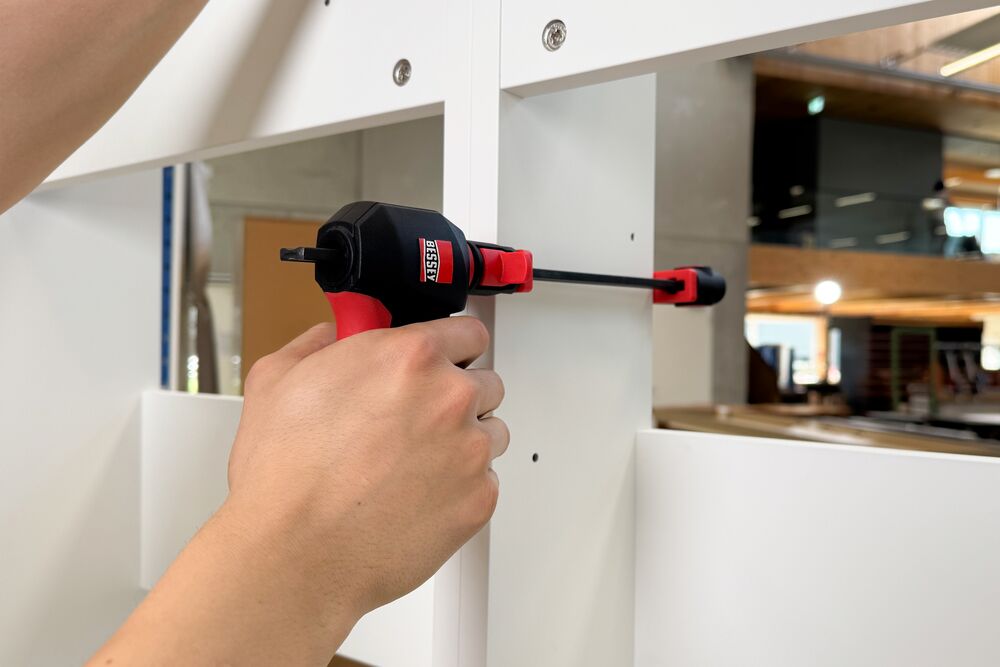

EZ360M
Ergnonomics
Always the most comfortable Pump Position
The ergonomically optimised pump position can be selected for every work situation - for comfortable and efficient work.
Flexibility
Can also be used in confined Spaces

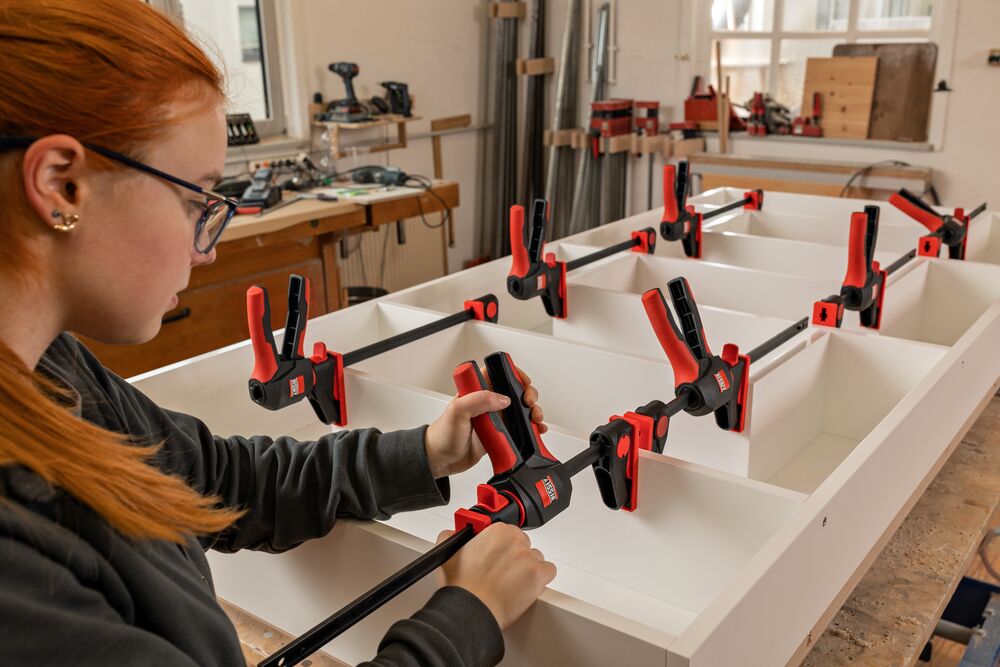

Clamping several clamps next to each other in the tightest of spaces - rotated handle position allows access to each clamp.
Durability
Dynamic Design meets maximum Robustness

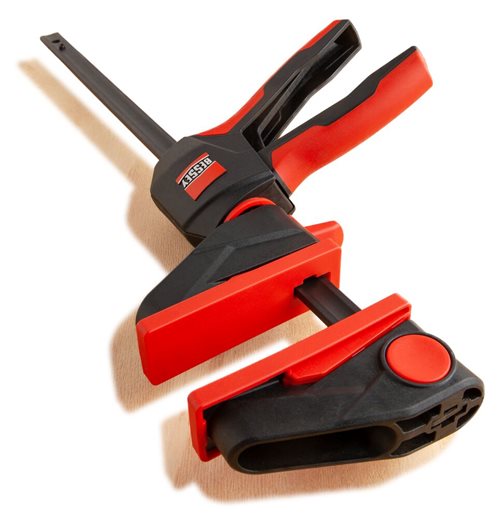

The upper and lower sections are made of glass fibre-reinforced polyamide, the rail is made of burnished steel.

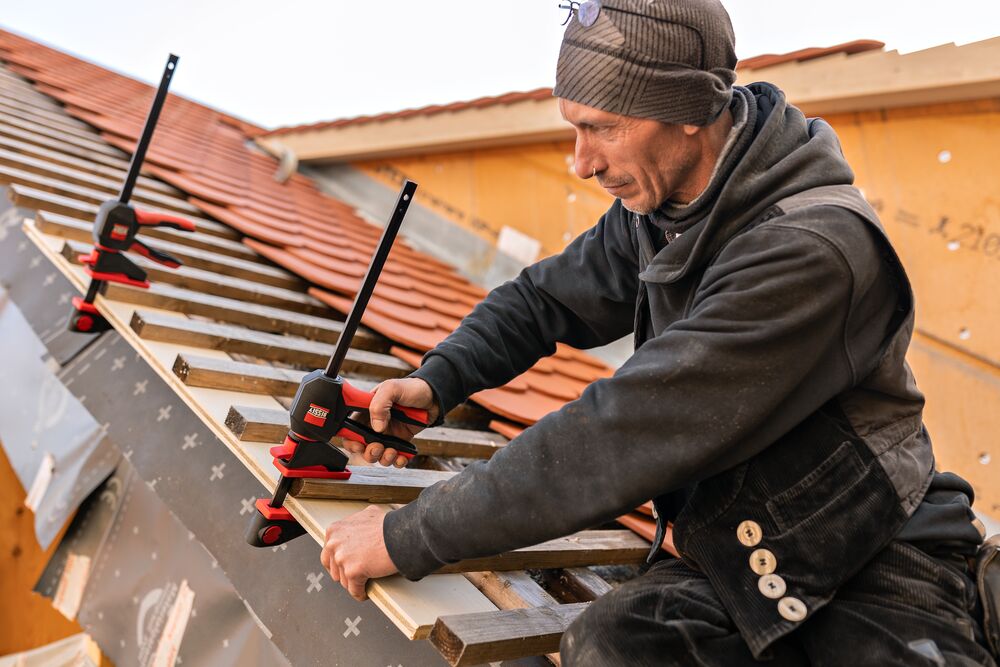

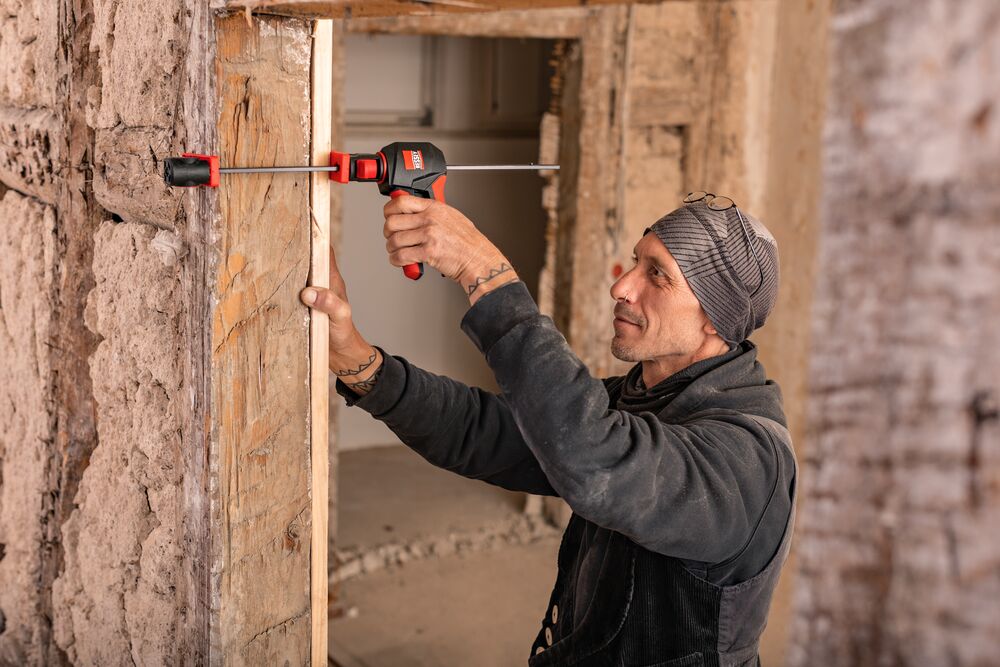

Enormous variety of applications
Ideal for:
- Assembly work
- Furniture and carpentry work
- Interior fittings
- Staircase construction
- drywall construction
- Kitchen and shop fitting
- DIY
Convenient and efficient

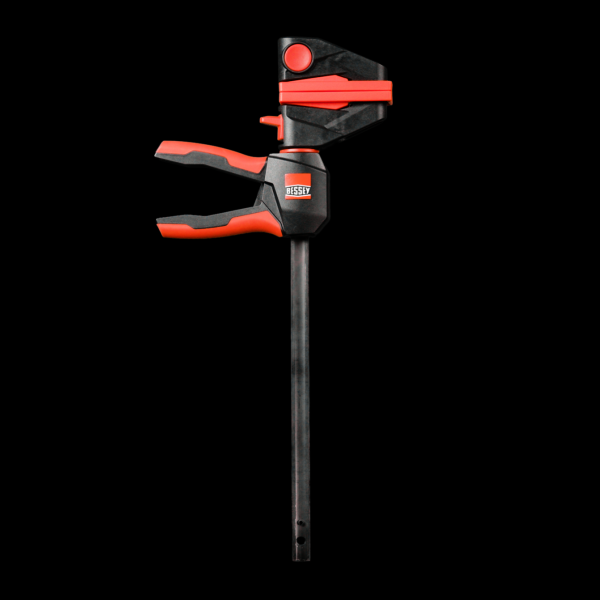

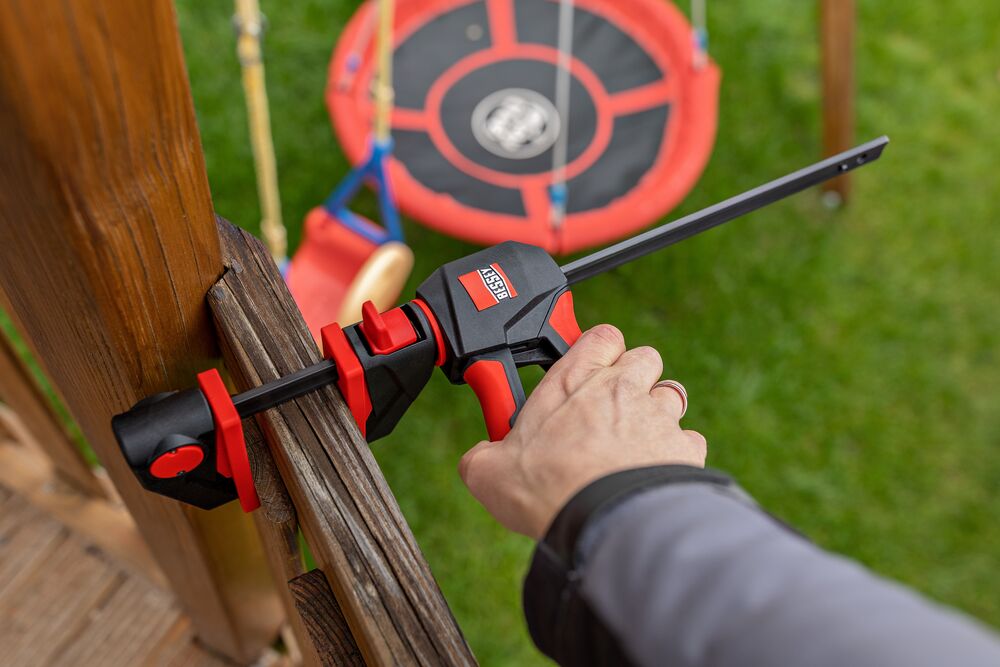

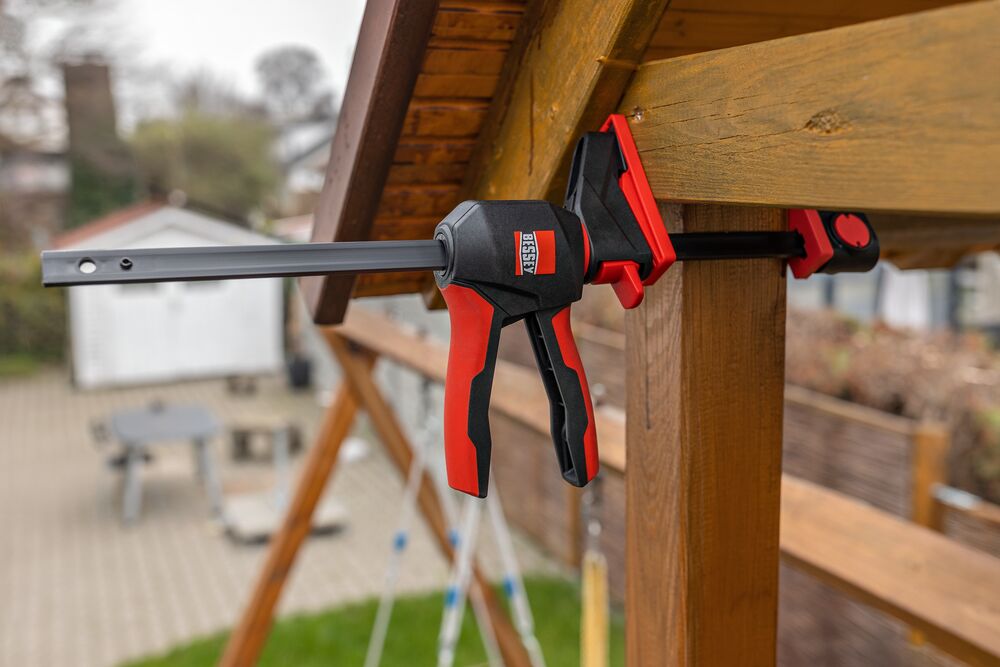

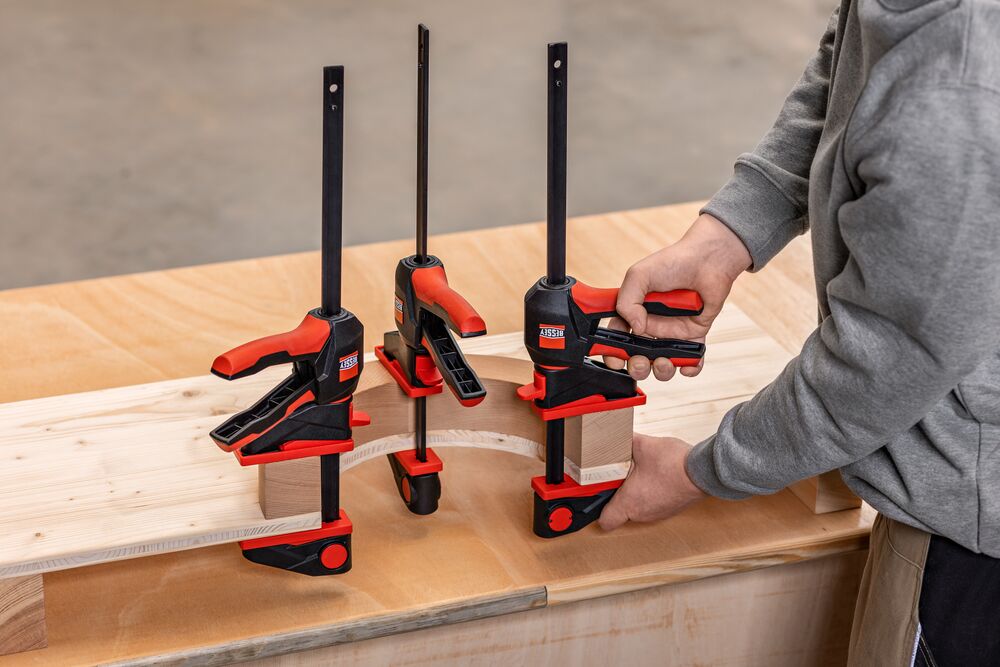

The complete handle unit can be rotated around the rail. A 12-stage locking mechanism ensures that the selected handle position is held securely. Depending on the work situation, the most ergonomic pump position can be selected to hold the workpiece comfortably and securely - whether high up, down or from the opposite side.
Practical even in confined spaces

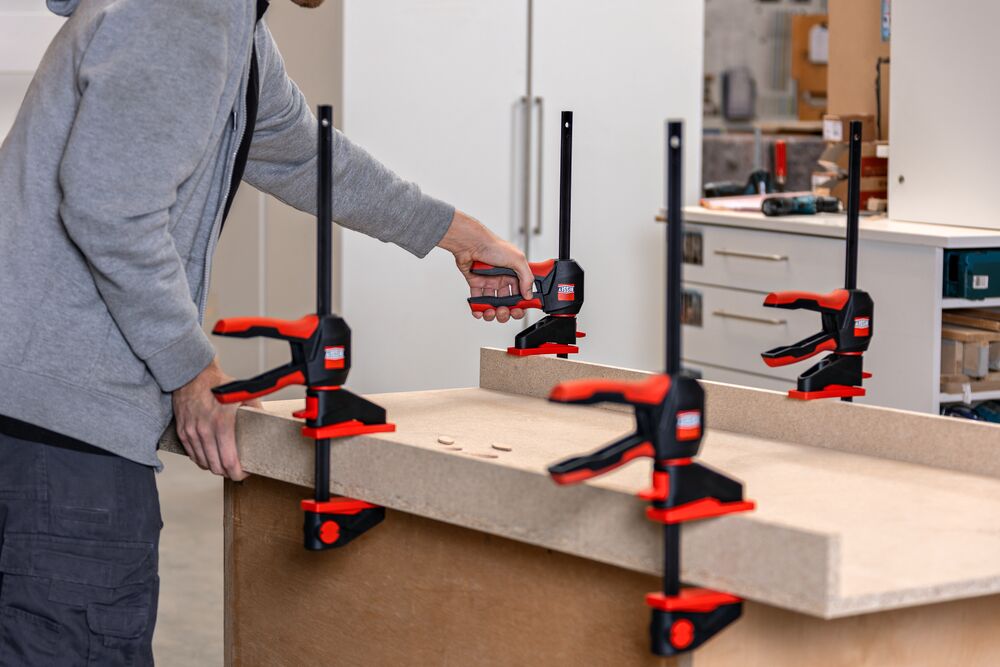

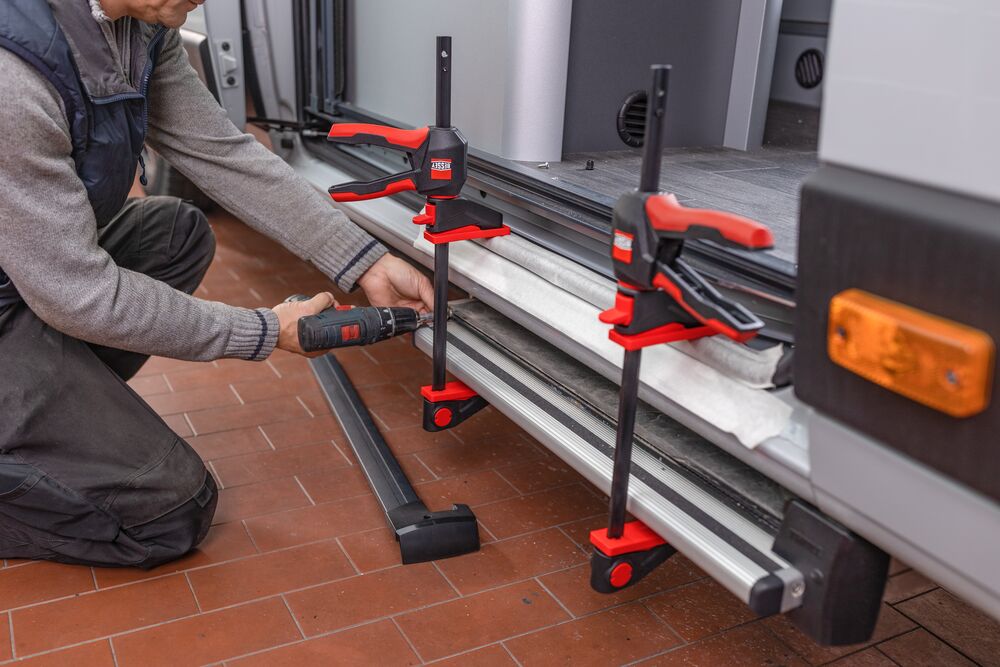

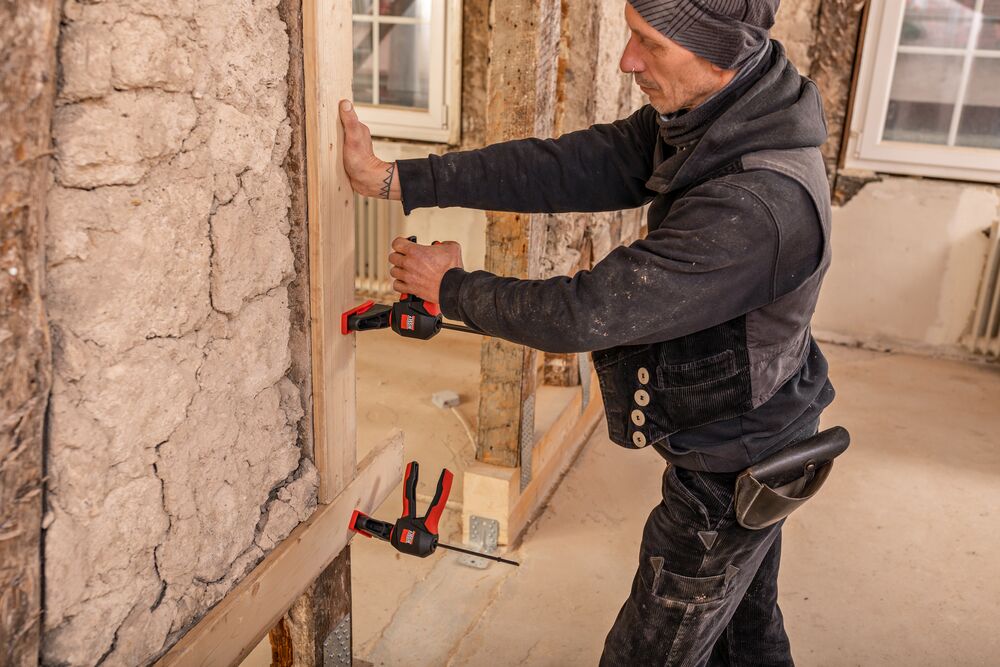

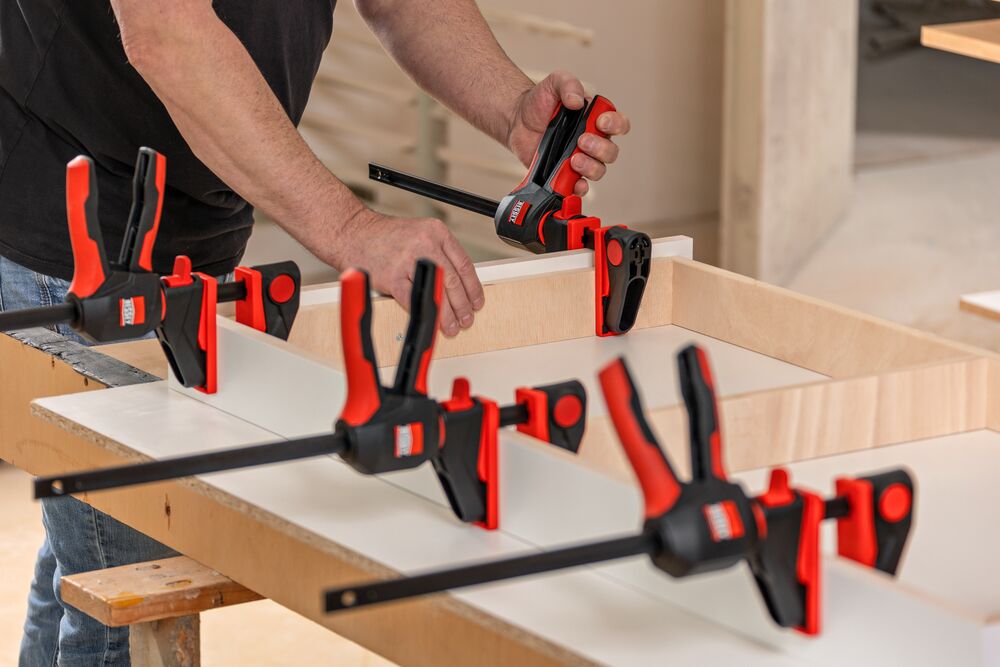

The swivelling handle makes it easy to work in confined spaces - even when using several clamps at the same time. This is because the handle can be easily swivelled out of the working area both before and after the clamp is applied.
Gentle and safe clamping

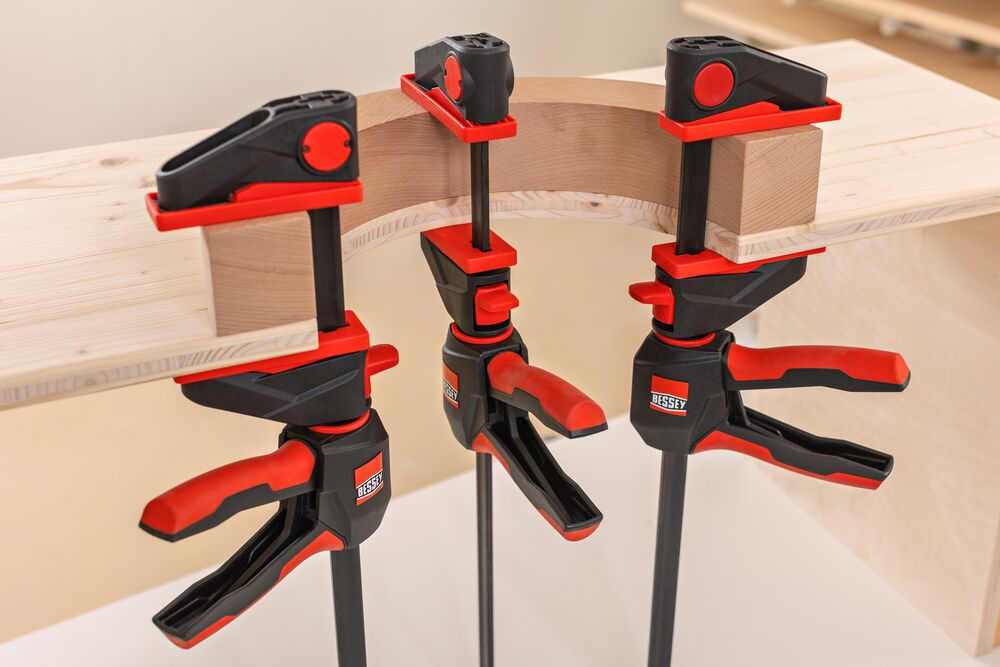

The long protective caps are not only attached to the clamping surfaces, but are also threaded onto the rail. This means they sit securely, are not easily lost and distribute the clamping force evenly - to protect sensitive workpiece surfaces.
Can be quickly repositioned for spreading

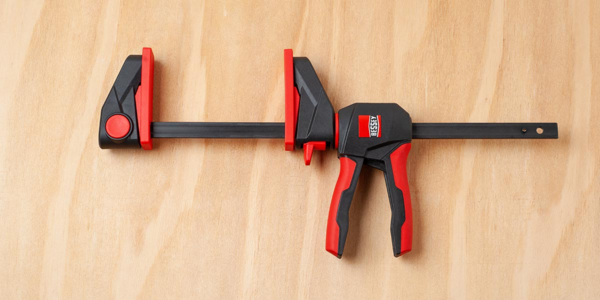

The upper section can be removed from the rail and reattached at the other end - the two largest versions even require no tools.

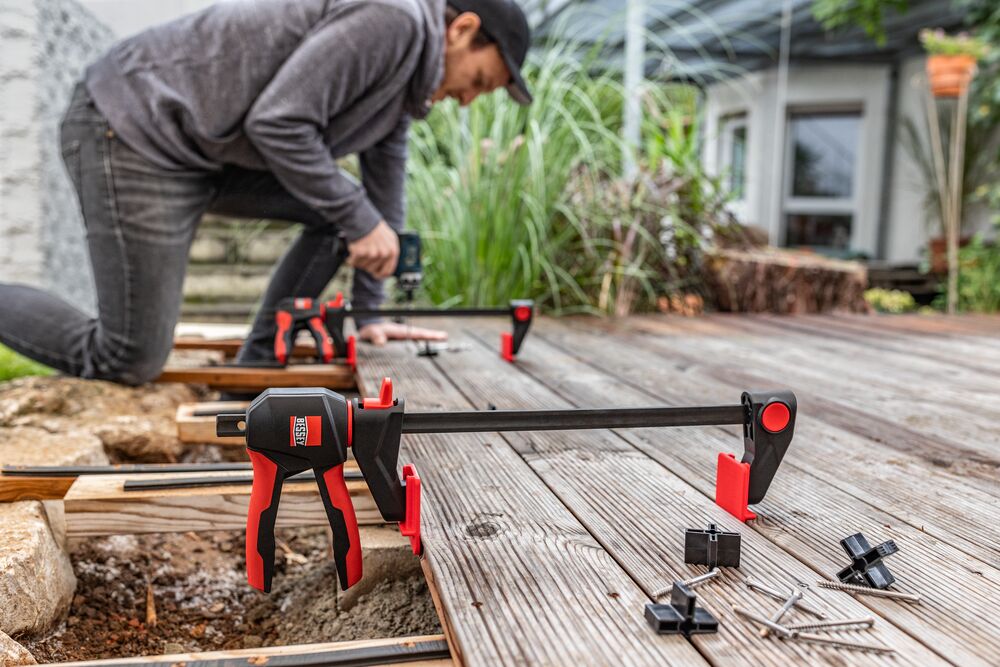

Clever accessory for installing decking boards
The EZ-TD accessory set is available for quick and precise alignment of decking boards up to 20 cm wide. This 14-piece assembly set can be used in combination with the EZ360 from 300 mm span width.

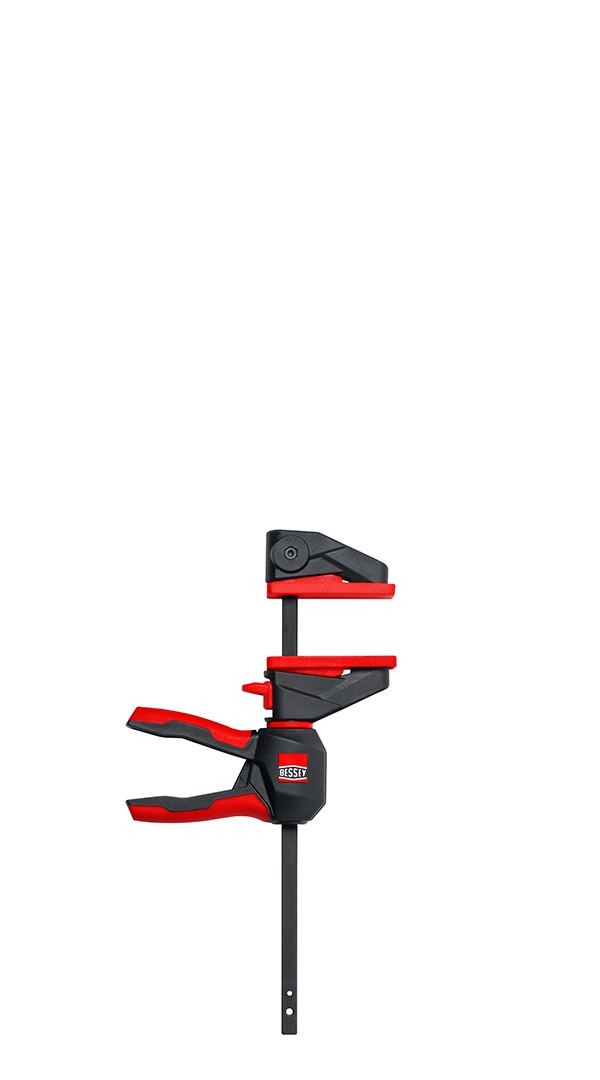

Which size is right for you?

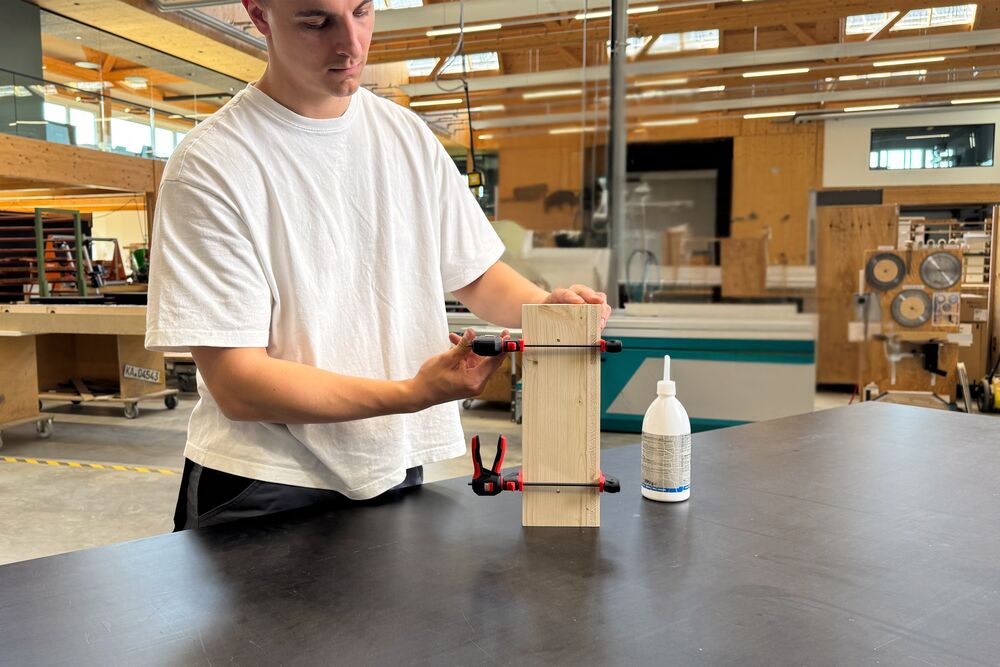

EZ360S-11SET
Throat Depth:
40 mm
1 variant:
Clamping width 110 mm
Clamping force:
400 N / 40 kg / 80 lbs

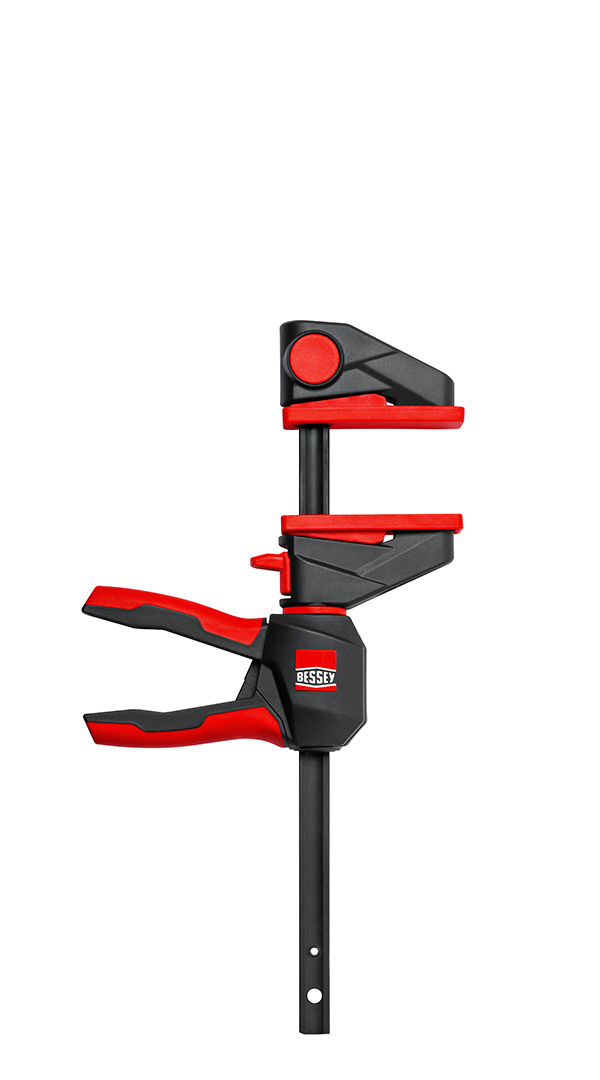

EZ360M
Throat Depth:
60 mm
2 variants:
Clamping width 150 / 300 mm
Clamping force:
750 N / 75 kg / 165 lbs

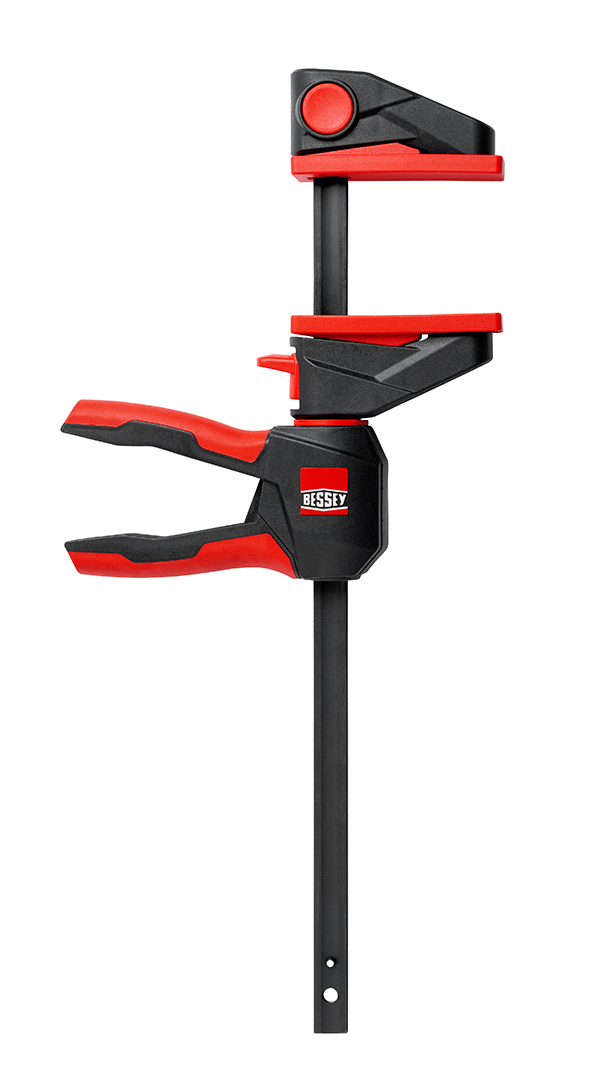

EZ360
Throat Depth:
80 mm
4 variants:
Clamping width 150 / 300 / 450 / 600 mm
Clamping force:
1400 N / 140 kg / 300 lbs
What users say about the EZ360
"Whether small, medium or large - the EZ360 impresses in every size with the usual strong BESSEY quality. What I like most is the rotating handle: I can adjust it to the position that suits me best - that makes working much more comfortable. For me, it's a real must-have for every craftsman."
Oliver
Journeyman carpenter
More videos about the EZ360
Frequently asked questions about the EZ360 rotating one-hand clamp
Absolute. The EZ360 is made from high-quality materials such as glass fibre-reinforced polyamide and burnished steel. The handle mechanism is also protected from dirt by a plastic housing. This ensures reliability in use on the construction site and in the workshop.
Yes, the top section can be easily removed for the spreading function and reattached at the other end of the rail. This applies to all three sizes - the two largest sizes can even be converted without additional tools.
The 360° rotatable handle unit ensures perfect access. It enables the most ergonomic pumping position - without any contortions. In addition, the handle unit can be swivelled out of the working area even after the clamp has been attached, and the selected handle position remains securely fixed thanks to the 12-stage locking mechanism.
